Brand Name : GZ
Model Number : GZ Nylon Filter Mesh
Certification : ISO9001
Place of Origin : Hebei, China (Mainland)
MOQ : 50 Meters
Price : Negotiable
Payment Terms : T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability : 300000 Meters per month
Delivery Time : Within 2 weeks
Packaging Details : Mesh roll on paper scroll, packing in carton and plastic bag, and then in plastic woven bag or in carton or in wooden case, it also can be packed as customers requirement.
Material : 100% Nylon
Application : For filter
Characteristics : Corrosion-resistant
Width : 1.0, 1.27m, 1.45m, 1.65m, 2.2m, 3.33m
Specification : 200 micron, 300 micron, 350 micron,400 micron etc.
Length : Normal is 100m /roll and customized
Grade : Food grade and Industrial
Color : White
Screen Nylon Filter Mesh 200 350 450 550 Micron , Corrosion - Resistant:
Micron Nylon Filter Screen in micron filtering industries,such as
Mining
Agriculture
Aquaculture
medical and laboratory.
infusion and transfusion filters
micro-aggregate filters
arterial and venous filters in oxygenator reservoirs and blood bag
feature:
1) Acid and alkali, corrosion resistance.
2) Low resistance line, can be repeated washing, high efficiency.
3) Captured by the length of fiber and dust, easy to clean filter efficiency is not affected by cleaning.
4) Good resistance to impact strength.
Application:
Nylon mesh application:
GZ Screen Mesh supply precision woven Nylon mesh.
This can have plain weave or double warp structure and can be used in Filtration, Screening, Sifting or Milling applications from the production of filter bags, and screens to being injection moulded as special filter applications.
We can supply Nylon Mesh in many different sizes with a mesh opening of 42 to 1900 microns.
We have two kind of packing type:
1.Fold the mesh into plastic bag ,then in carton.Suitable for small quantity and have no requirement on the crease.
2.Pack the mesh with paper and plastic bag,then in carton.Suitable for large quantity and the mesh has better surface then folding type.
Nylon Filter Mesh Specification | |||||||
Model | Mesh/cm | Mesh/inch | Aperture (μm) | Thread Dia. (μm) | Open Area (%) | Thickness (μm) | Theoretical Ink (cm3/m2) |
36-100 | 36 | 90 | 178 | 100 | 41 | 195 | 86 |
40-100 | 40 | 100 | 150 | 100 | 36 | 192 | 95 |
44-100 | 44 | 110 | 127 | 100 | 31 | 175 | 105 |
48-80 | 48 | 120 | 128 | 80 | 38 | 150 | 73 |
56-60 | 56 | 142 | 120 | 60 | 44 | 110 | 48 |
59-60 | 59 | 150 | 110 | 60 | 42 | 98 | 50 |
64-60 | 64 | 160 | 100 | 60 | 38 | 120 | 55 |
72-50 | 72 | 183 | 89 | 50 | 41 | 90 | 44 |
80-50 | 80 | 203 | 75 | 50 | 36 | 93 | 48 |
88-40 | 88 | 224 | 74 | 40 | 42 | 65 | 34 |
96-40 | 96 | 244 | 64 | 40 | 38 | 76 | 37 |
100-40 | 100 | 254 | 60 | 40 | 36 | 78 | 39 |
104-40 | 104 | 264 | 56 | 40 | 34 | 79 | 40 |
120-40 | 120 | 305 | 43 | 40 | 27 | 80 | 46 |
Note:The above datas are theoretic,please reference the actual data if there is a difference! |
![]() |

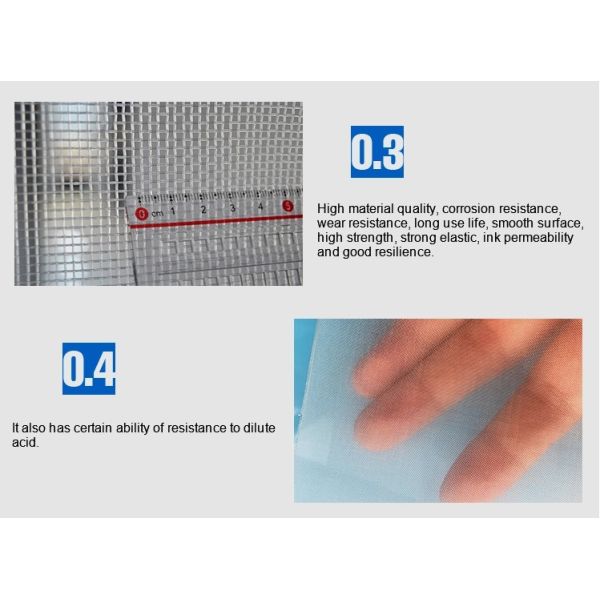

Screen Nylon Filter Mesh 200 350 450 550 Micron , Corrosion - Resistant Images |
